Composite Fire Doors
External Composite Fire Doors

When it comes to Door-Stop fire doorsets, it's not just about performance characteristics, we have also thought carefully about aesthetics. Our fire doorsets are available across a wide range of paint colours, door styles, ironmongery and glazed aperture variations.

Whatever you choose, you can be assured that our entire product range has been third party certificated and is manufactured under our strict factory production control system, meaning that we have complete oversight of every raw material, every component and every process. We have complete traceability of every single doorset

Extra layers of assurance – from Door-StopDoor-Stop’s new range of Dual Certificated Fire and Security Doorsets has been designed and manufactured with Best Practice in mind. With dual or single certification options, timber core and GRP facings, this is a specification that provides extra peace of mind for building owners, landlords, residents, and contractors

This doorset has been designed to be the product of choice for those who want to update their existing buildings or specify new developments. Even though it is not a requirement for timber fire doors, the Door-Stop fire doorset has been furnace tested from both directions, in order to provide additional assurances to the building owners and occupants. Certisecure, a scheme recognised by Secured by Design, has been used to accredit the security performance

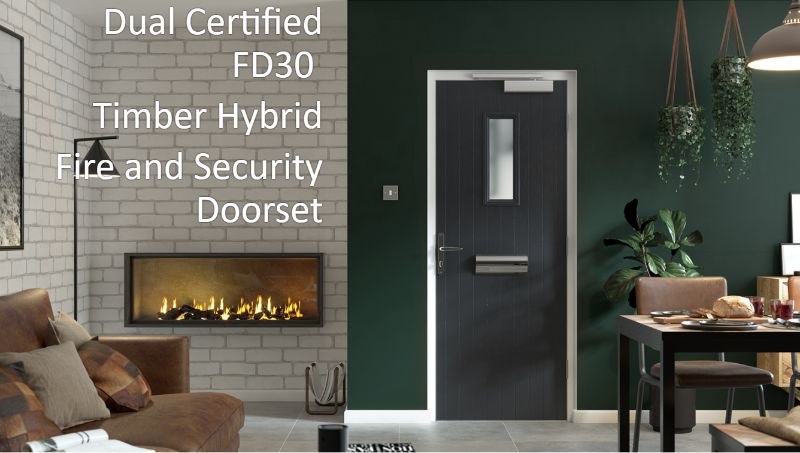

Dual certificated - Fire & Security and accredited by Secured by Design

Single Certification - Fire Doorset

Essential fire doorset facts

Primary test evidence and third party certification

The Door-Stop fire doorsets are tested to BS 476: Part 22 or BS EN 1634-1:2014 and third party certificated by Certifire (Warringtonfire) as FD30 doorsets. Door-Stop fire doorsets are certificated for 30 minutes fire integrity and suitable for use when fire insulation is required if the doorset has less than 20% of un-insulating glass, including any toplight. The primary test evidence reports are listed in the certificates and datasheets.

Single certification (Fire) CF 5906

Dual certification (Fire and Security) CS 5112, CF 5863

Enhanced security and Secured by Design accreditation

The dual certificated doorset is certificated for enhanced security and tested to PAS 24:2016 Enhanced Security. It is also accredited by Secured by Design.

Functional for all building users

The doorsets include design features to enable compliance with BS 8300:2018 and Approved Document M, includes a low level threshold, the ability to have a high and low level eye viewer and include door closers that can be adjusted to achieve suitable opening and closing forces.

Design durability

The solid timber core of the door leaf is faced with a durable glass reinforced plastic skin. The timber hybrid frame contains a centre reinforcement of timber to give structural integrity in an emergency

Contemporary and traditional styles

When it comes to Door-Stop fire doorsets, it's not just about performance characteristics, we have also thought carefully about aesthetics. Our fire doorsets are available across a wide range of paint colours, door styles, ironmongery and glazed aperture variations

Whatever you choose, you can be assured that our entire product range has been third party certificated and is manufactured under our strict factory production control system, meaning that we have complete oversight of every raw material, every component and every process. We have complete traceability of every single doorset

Side Panels are also available

Proven Fire Performance

All items of ironmongery are critical to a fire doorset's performance. Even the addition of a small item can dramatically impact performance in an emergency.  Door closers, hinges, locks and latches must be CE marked (where applicable) to comply with the Construction Products Regulation (CPR)

In addition to these core essentials, a fire doorset often needs a variety of other components including handles, intumescent seals, smoke seals, letter plate or air transfer grilles

How to remain compliant

All items of ironmongery are critical to the performance of the fire doorset. A small change can have an enormous impact in an emergency. Door-Stop have tested all elements of ironmongery and the certificate and data sheet contain the allowed specification including intumescent protection and fixing specification.

If throughout the life of the doorset a component replacement is required, it is critical that the components exactly match those listed on the relevant fire certificates and data sheet for the specific doorset. Changing specification of any components will invalidate product certification, warranties and may present safety and performance risk . Any maintenance works should be carried out by a competent person, documented, and kept as part of the building record and fire door register

Colours

Our FD30 Fire Doors are available in Wood White, Red, Green, Blue, Black and also Chartwell Green, Cream, Anthracite Grey, Black-Brown, Duck Egg Blue and Poppy Red

Frame colours available include Smooth White, Oak, Rosewood, Mahogany, Textured Wood White, Black-Brown, Chartwell Green, Cream and Anthracite Grey

Fire Hardware available in Gold and Chrome

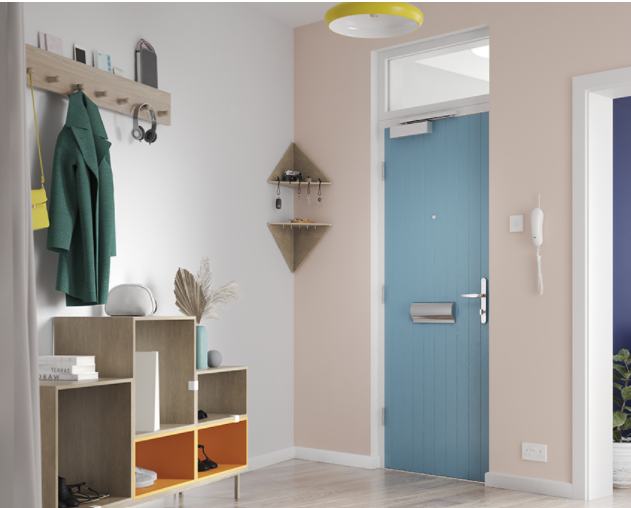

Door-Stop’s contemporary third party certified fire rated internal entrance door sets, ideal for apartments and dwellings

Door-Stop’s third party certified composite fire rated internal entrance door sets for flats.


Glazing

Our Fire Doors are available glazed in with Fire Clear, Fire Stippolyte or Fire Frost

  • Decorative designs are not available within our Fire-Door range

Accreditations

Firedoors Icon Timber

The Door-Stop fire door range has been fire and smoke tested for up to 30 minutes (FD30s) by Warrington Exova and independently assessed by Certifire (CF5324). All fire doors have been tested to BS 476 Part 22, and subject to the Q-Mark enhanced security scheme. Each door in the range is manufactured to a high level of security and complies with PAS023/PAS024 security accreditation. An SBD (Secured by Design) approved upgrade option is also available on selected doors. Purchasing a third party certified door will provide total reassurance that it is a fully tested, uncompromised fire door.

All Door-Stop fire doors are supplied with a unique identification label fixed to the door to ensure full traceability

Closers

To ensure your installation runs smoothly, not only do we provide a surface closer but unlike many other suppliers, we also pre-prepare the door and frame for its fixings ensuring accurate installation every time

ASSA ABLOY

Surface Mounted

  •  (HxDxW) 55 mm x 40mm x 206 mm
  •  Rack and pinion door closer with link arm
  •  Variable closing and latching speeds
  •  EN 1154 compliant


ASTRA 3000

Hinge Mounted

  •  Continuous in-house testing to 500,000 cycles
  •  Power size 1 - 4
  •  Adjustable speed and latching action
  •  BSEN 1634-1:2000 and BSEN 1363-1999


PERKO R100

Hinge Mounted

  •  Tested to withstand 500,000 open and close cycles
  •  Power size 3
  •  Unique Twin-power mechanism
  •  Meets BS EN 1154:1997 and BS 476 Part 22:1997

Installation

We ensure all our Door-Stop FD30 Doors are supplied and installed by our own experienced teams using the correct intumescent silicone sealant. This is in addition to the double length intumescent strips around the external frame, ensuring a great installation


Tactical banner - internal colour.jpg



Most Recommended Best Reviewed Window and Door Installer in South Wales

As Approved Installers for Genuine Door-Stop FD30 Fire Door Composite Doors, we offer our dedicated survey and install service throughout South Wales including Abergavenny, Crickhowell, Usk, Monmouth, Brecon, Chepstow, Cwmbran, Newport, Cardiff and Merthyr areas and beyond
